CDA 90cm Chimney Hood – Stainless Steel

£144.00
In Stock
  • 475m³/h extraction rate ideal for mid size kitchens
  • Maximum noise rate 64dB similar to a dishwasher
  • Easy to use push button controls
  • Dimensions: (H)65cm x (W)90cm x (D)50cm
  • 3 fan speed settings
In Stock
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: ECH93SS
Categories: , ,

Description

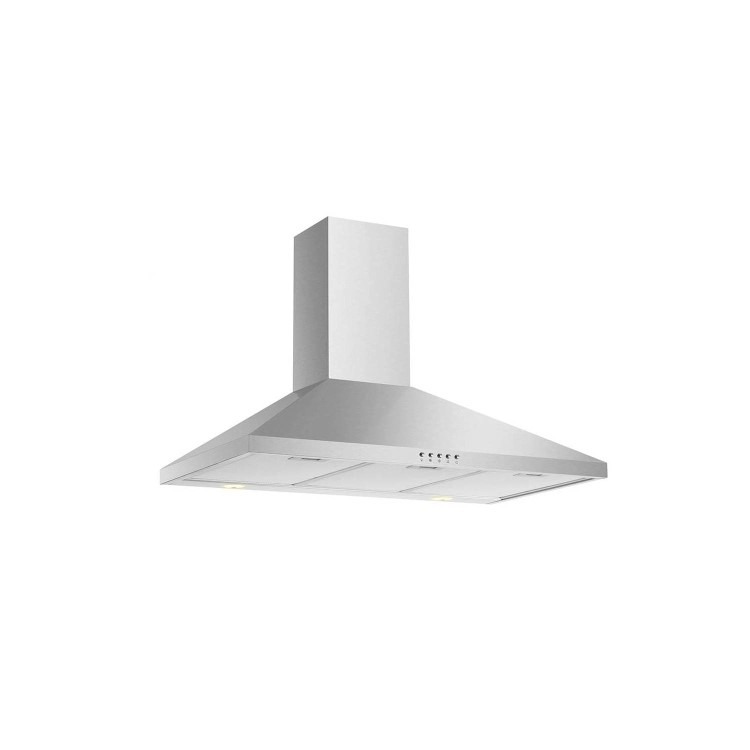

The ECH93SS 90cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen.

This cooker hood has 3 speeds with push button control, a twin fan motor, and built-in LED lights to provide illumination while cooking.

Features

Ducted/recirculating installation

3 speeds

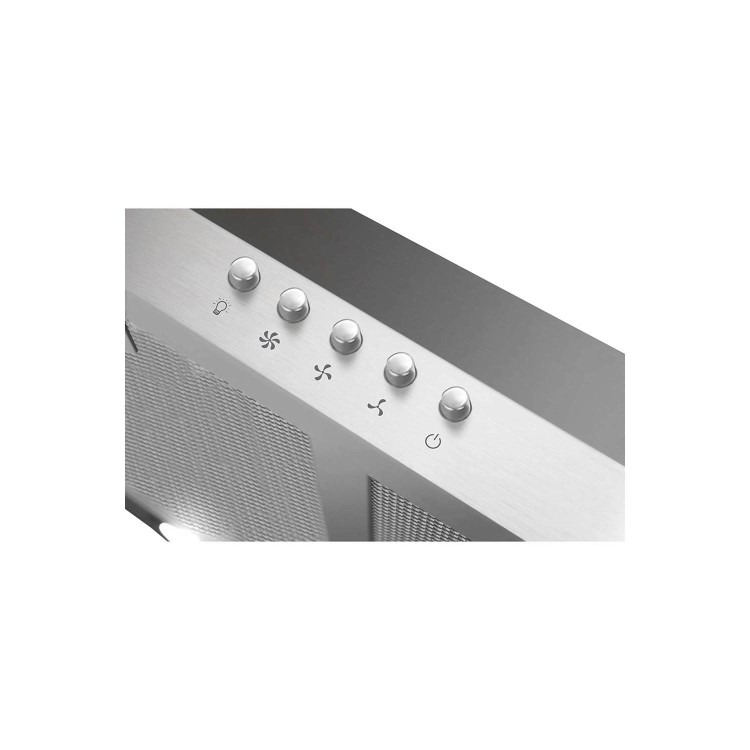

Push button control

150W motor

Height adjustable

Maximum extraction rate: 468 m³/hr

Maximum noise level: 64 dBA

Energy

Energy rating: C

Lighting

Number of lights: 2x 4W LED

Filters

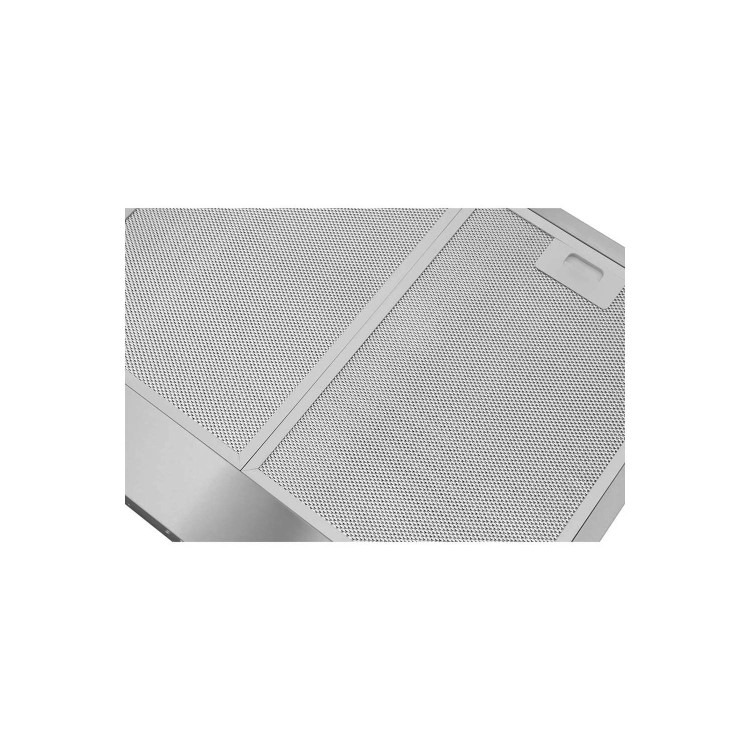

Number of grease filters: 3

Number of charcoal filters (optional): 2

Charcoal filter code: CHA37

Extraction Rates & Noise

Extraction rate at first speed: 270 m³/hr

Noise level at first speed: 53 dBA

Extraction rate at second speed: 340 m³/hr

Noise level at second speed: 60 dBA

Extraction rate at third speed: 468 m³/hr

Noise level at third speed: 64 dBA

Technical Specifications

Required height over gas hob: 700mm

Required height over electric hob: 650mm

Rated electrical power: 158 W

Power supply required: 3 A

Fluid Dynamic Efficiency: D

Grease Filtering Efficiency: C

Lighting efficiency: A

Dimensions & Specs

General information
Brand CDA
Cooker Hood Type Chimney Hoods
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Push Button Control
Number of lights 2
Type of lamps used LED
Grease Filter Included Yes
Grease filter material Aluminium
Warranty 2 Year labour / 5 years parts

Performance
Speed Settings 3
Minimum Extraction Rate 270m³/h
Maximum Extraction Rate 475m³/h
Maximum Noise Level 64dB
Annual energy consumption 67.7kWh/a

Installation
Installation Type Wall-mounted
Vent Location Top
Plug type None
Connected load 158W

Efficiency Information
Fluid dynamic efficiency class D
Grease filtering efficiency class C
Lighting efficiency class A
Energy Rating C

Dimensions & Weight
Maximum height 1024mm
Minimum Height 644mm
Width 90cm
Depth 50cm
Weight 7.3kg
Diameter of Air Outlet 150mm
Chimney Depth 189mm
Chimney Width 219mm
